SNES OSS code opened!

www.nintendo.co.jp



I compare u-boot code with NES u-boot,
some file are differenced but they are fix to compile error for new compiler.

but only 1 file has clearly changed.



f:id:honeylab:20171003124101p:plain



f:id:honeylab:20171003124207p:plain



This is axp power IC setting.

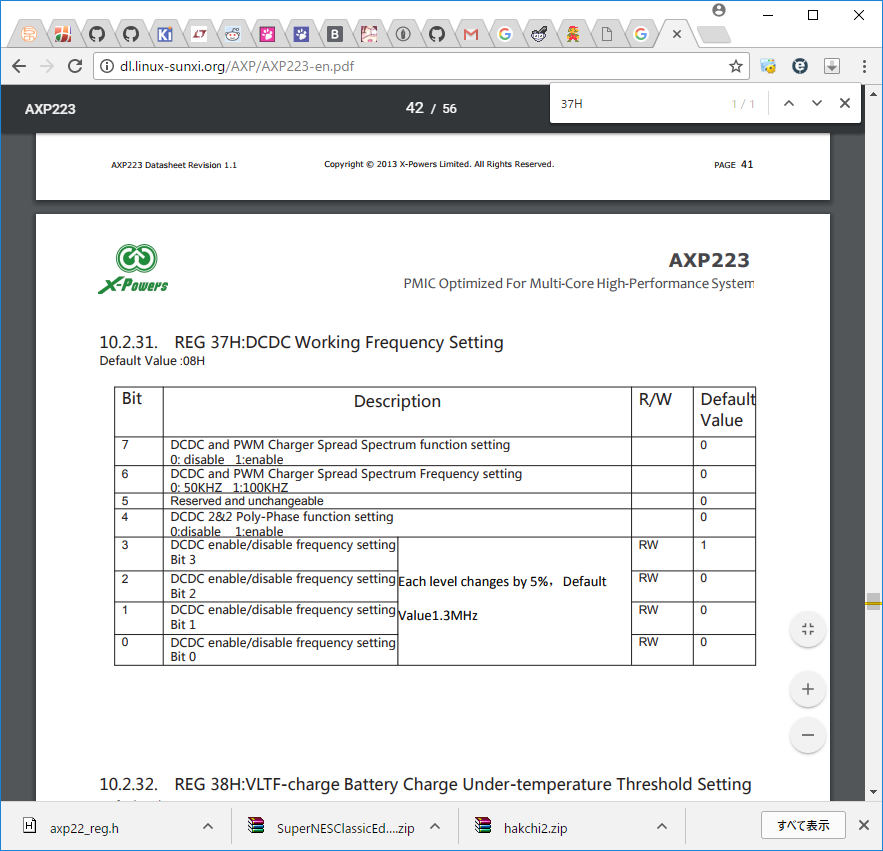

BOOT_POWER22_DCDC_FREQSET value is below.



f:id:honeylab:20171003125004p:plain

default value is 0x08 ,but clear lower 4bit and set to 0x00
I don't know why change setting now.

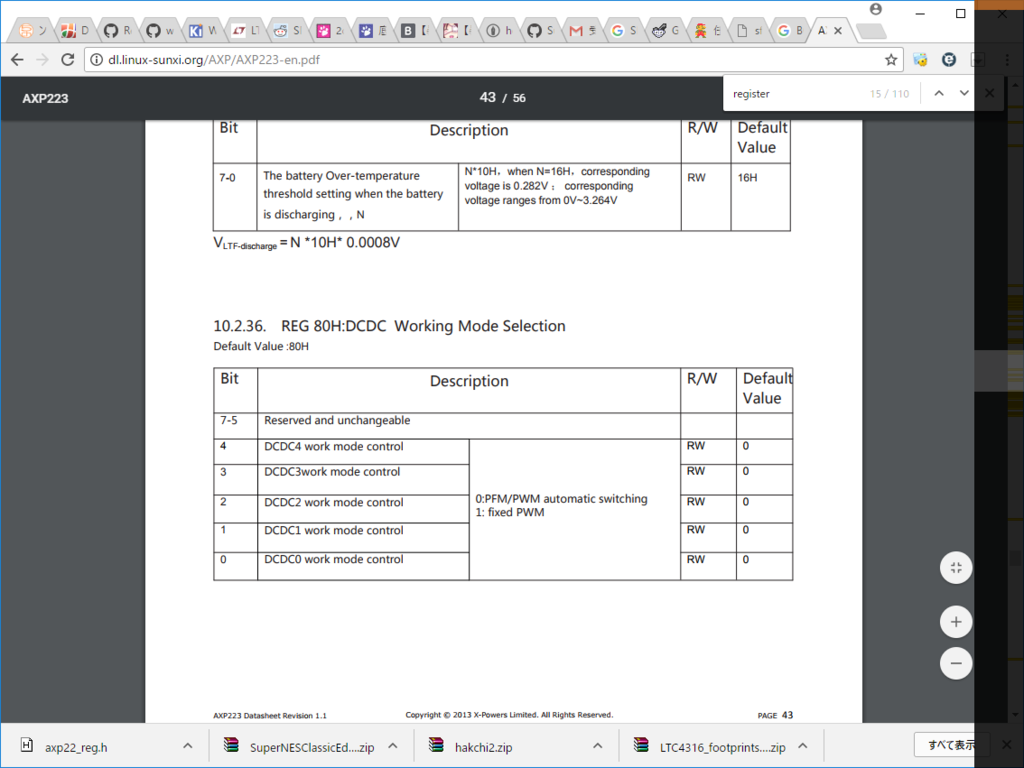

BOOT_POWER22_DCDC_MODESET value is below.

f:id:honeylab:20171003124723p:plain

default value is 0x80 and change to 0x86.
It means DCDC1,DCDC2,DCDC3 to fixed PWM mode.

I don't know why setting just now.
