NEOGEO Arcade Stick Pro system update detail

NEOGEO ASP stock ui has mechanism for system update.

If on booting up, update.bin and update_desc.ini are placed on / of NAND,
update.bin has called with execv.

With placing "update.img" on USB stroage and insert to ASP , and select "System Update" will place these file onto NAND and reboot.

Next boot will run update working.

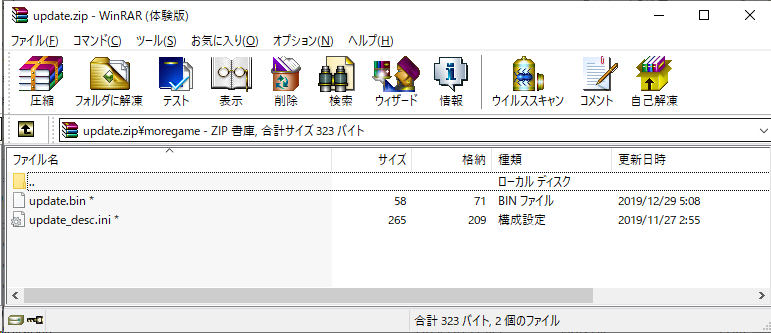

update.img is legacy zip format.

(it is some special , I could not make zip with WinZip,but open...)

f:id:honeylab:20200107100536p:plain

Update.img(zip) has least two files "[somedir]/update.bin" and "[somedir]/update_desc.ini".

And it must be set password "xugameplay-snk"



update.bin is normal ELF executable binary or any.

update_desc.ini likes below.

 #Template
[VERSION]=<v1.0>
[VERSION_CODE]=<1911180932>
[PUBLISH_TIME]=<2019.11.18>
[DESCRIPT]=<Do packed script which execute USB/command.sh>
[LAUNCHER_NAME]=<Honeylab World>
[LAUNCHER_PATH]=</mnt/data/honeylab/command>
[INJECT_PATH]=</mnt/data>
[CRC]=<2904145815>

This update_desc.ini is testing , but it will work with more test.

stock UI's "system update" supports not only game unlock but any works.
