NEOGEO Arcade Stick Pro cdkey file format for game unlocking.

・Unlock CD-Key system

Vendor already provided CD-Key files for unlocking two Games.
cdkey zip is contain cdkey/[GAME_TITLE].cdk file.

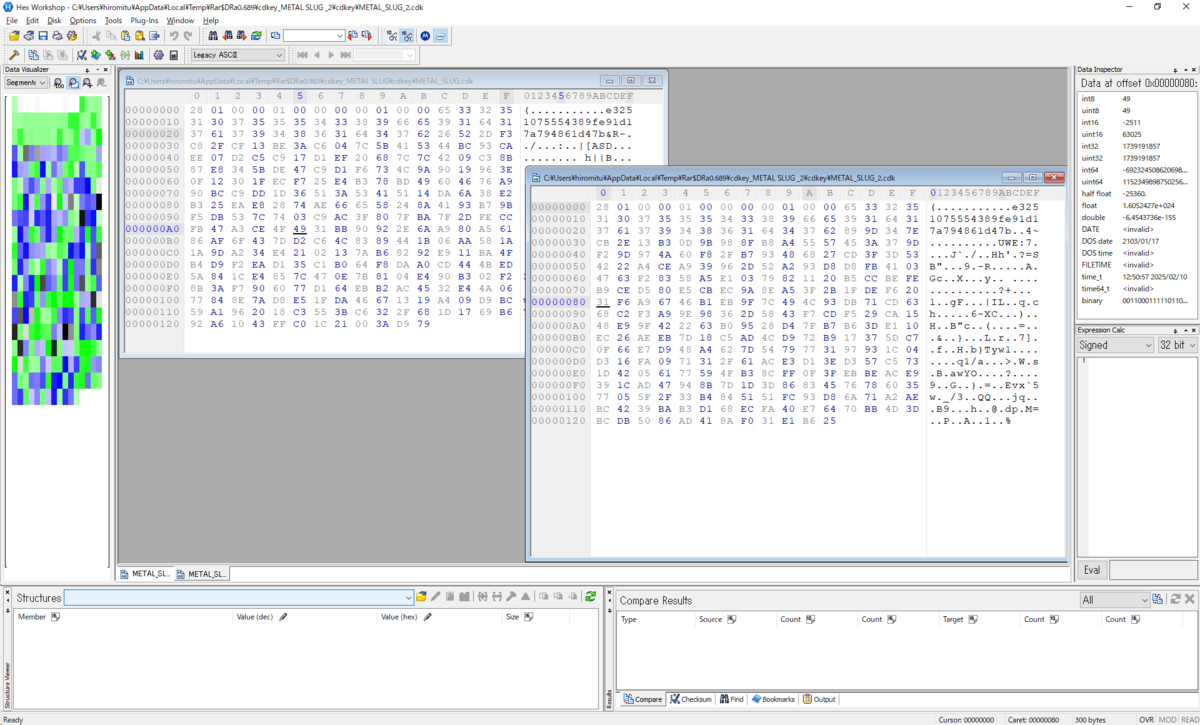

This hexdumps are METAL_SLUG.cdk and METAL_SLUG2.cdk.


44 bytes from start are id and check header.Their two cdk file are same binary .

First 4bytes little endian 32-bit is length of least bytes = 0x 00 00 01 28 = 296(dec) bytes.
Next 32bit int is count for something 4byte values : and values[0]=0x00000100

least 0x20 =32(dec)bytes is MD5 encoded data from some data.

 value is [ e3251075554389fe91d17a794861d47b ]

least 0x100 bytes are encrypted cdk file.

openssl can decrypt this data stream.

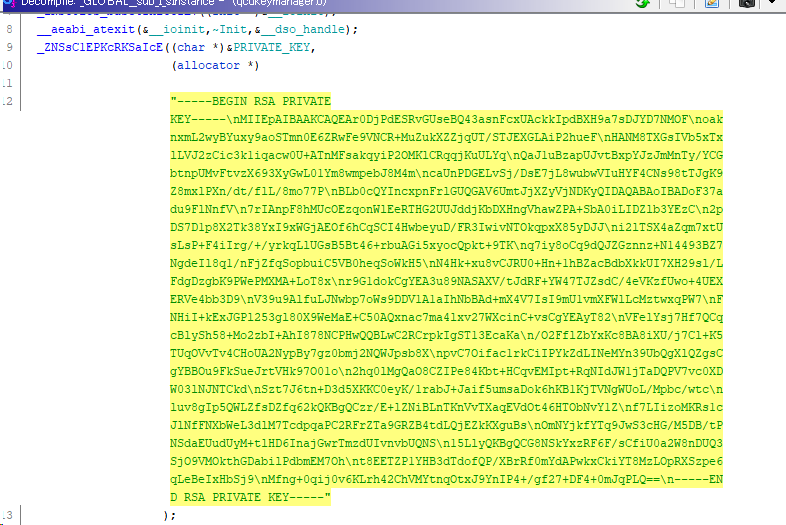

because stock executable contains a secret key for decrypt them.


snk $ openssl rsautl -decrypt -inkey snk.pem -in encrypted.dat -out decrypted.dat
snk $ cat decrypted.dat

this stream make order unlocking "mslug ,ID 27" to stock system.

openssl can re-generate public key for encrypt cdk file.
so in logically , we can generate cdkey file for unlock other games.
