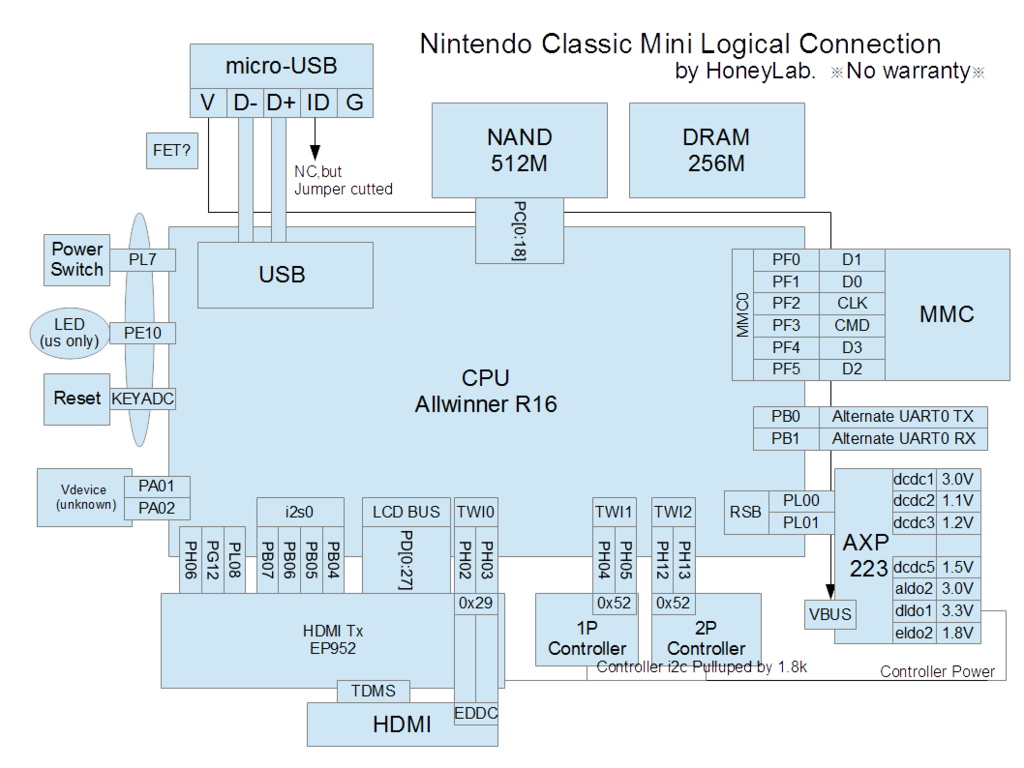

Nintendo Classic Mini Logical (Pin) Connection

This is made by my analysis,and there may be wrongs.

Waiting any comments.



f:id:honeylab:20161219225549p:plain

MicroUSB id pattern is alive but no connection because no parts deployed.
My next challenge is to connect any parts to working HOST mode.
